Temperature Transmitter
In the automation industry environment, the transmitter implements measurement and long-distance transmission of various physical quantities (such as temperature and pressure, etc.). This is an indispensable part of automation industry.

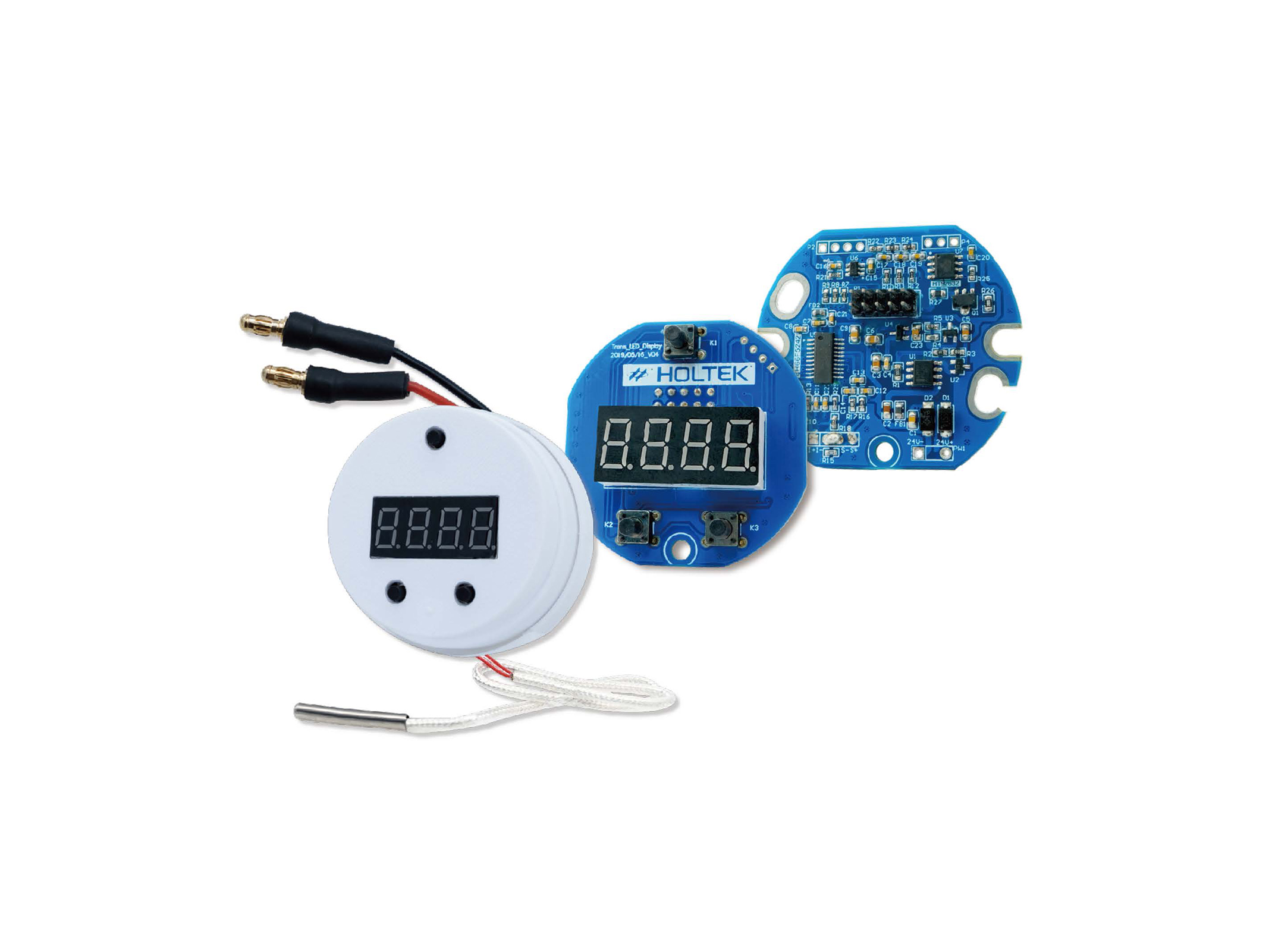

The Holtek temperature transmitter (4~20mA) uses a measurement dedicated MCU, the BH66F5242, which reduces the solution cost on the basis of ensuring perfect functions. The device includes a fully integrated LDO, OPA and a 12-bit D/A converter to drive the sensor together with a constant voltage/constant current circuit. The 24-bit Delta Sigma ADC is used to accurately sample sensor signals. The 16-bit PTM can generate a high-resolution PWM for 4~20mA current transmission. Using this MCU solution only requires a very also requires a very simple peripheral circuit. To allow users to develop their products rapidly, Holtek provides development suggestions, technical support and other technology information, which can be obtained from the “Reference Design Downloads” icon link on this page.
Application Areas
Sensor measurement applications, transmitters for industrial measurement

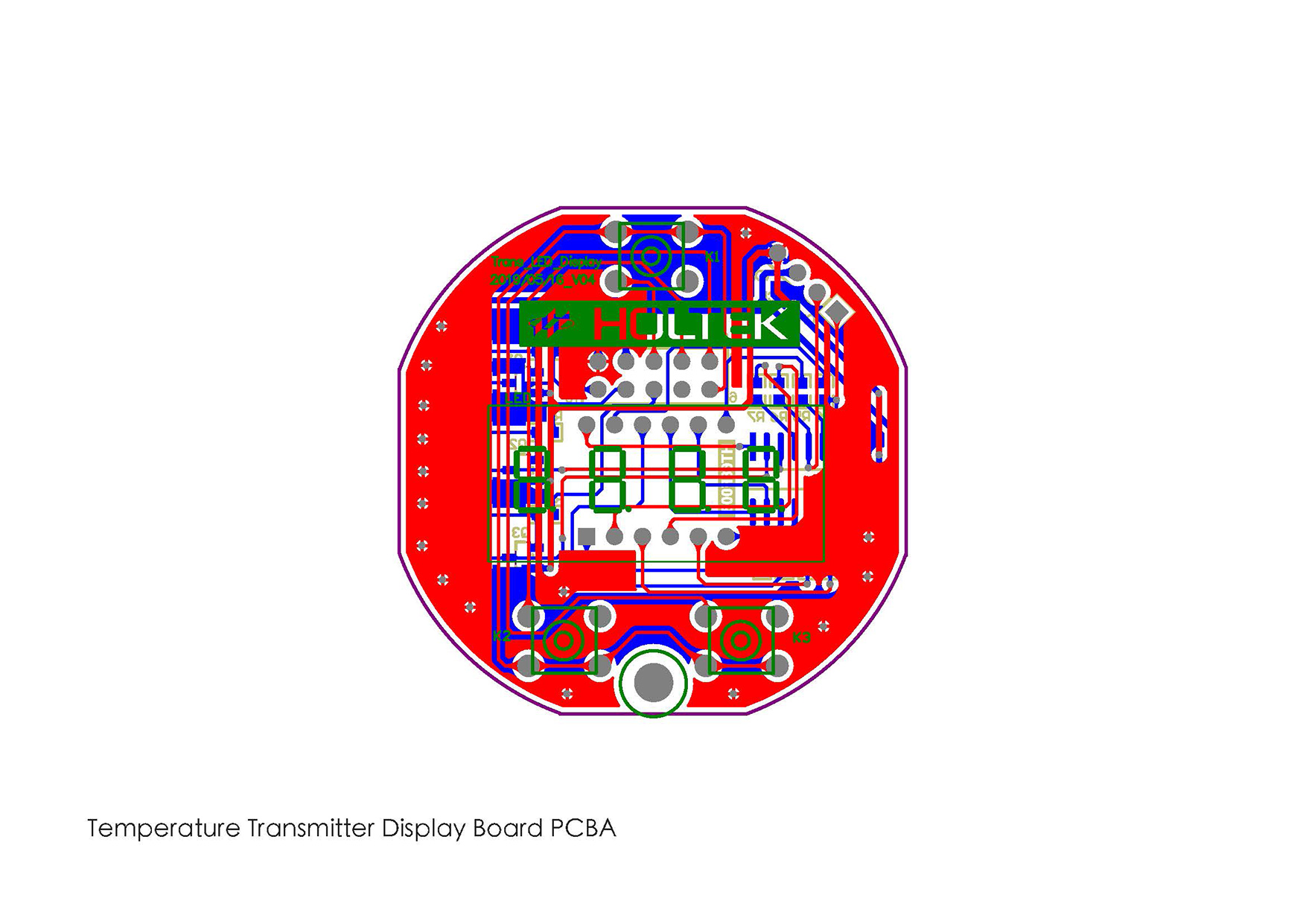

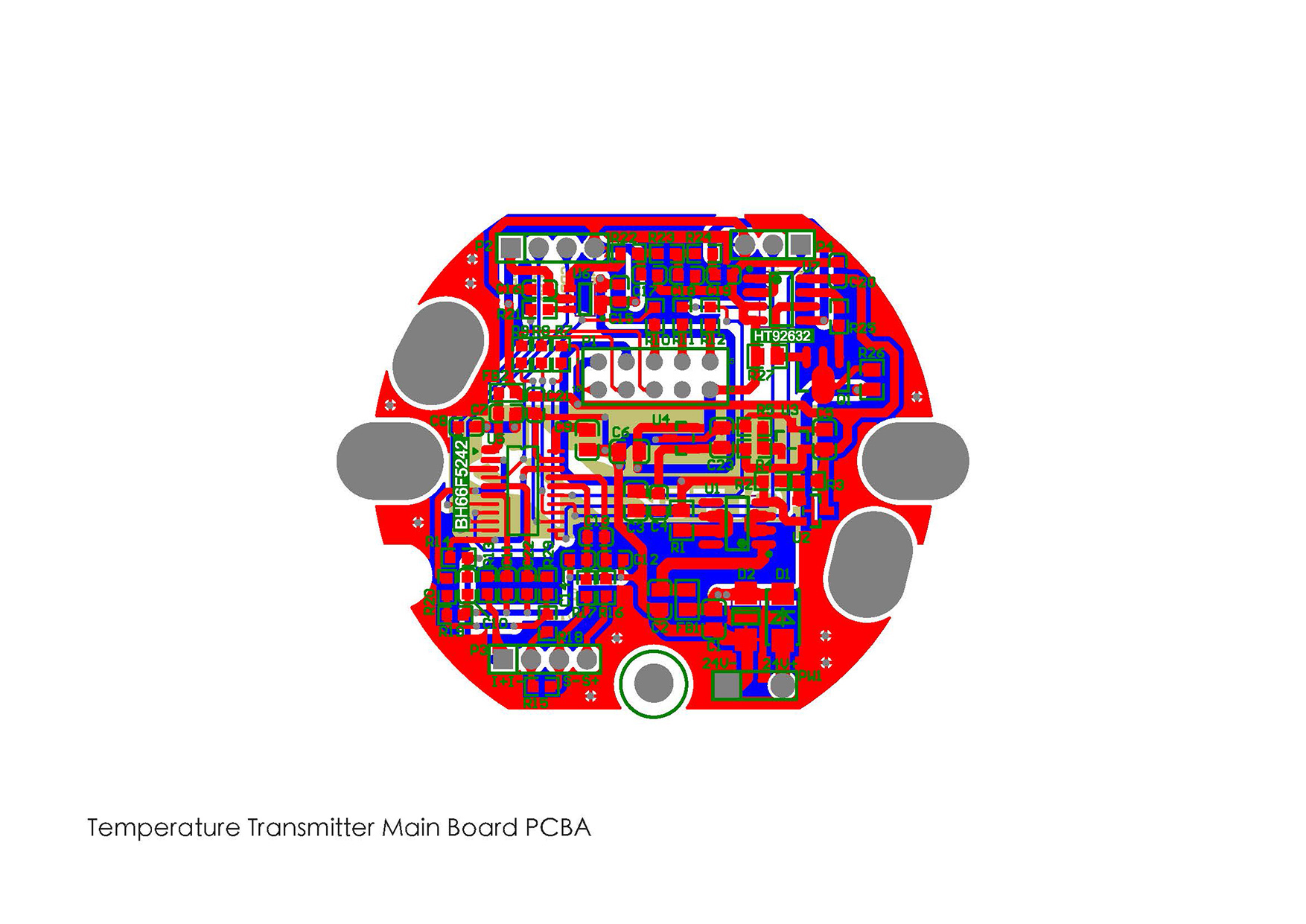

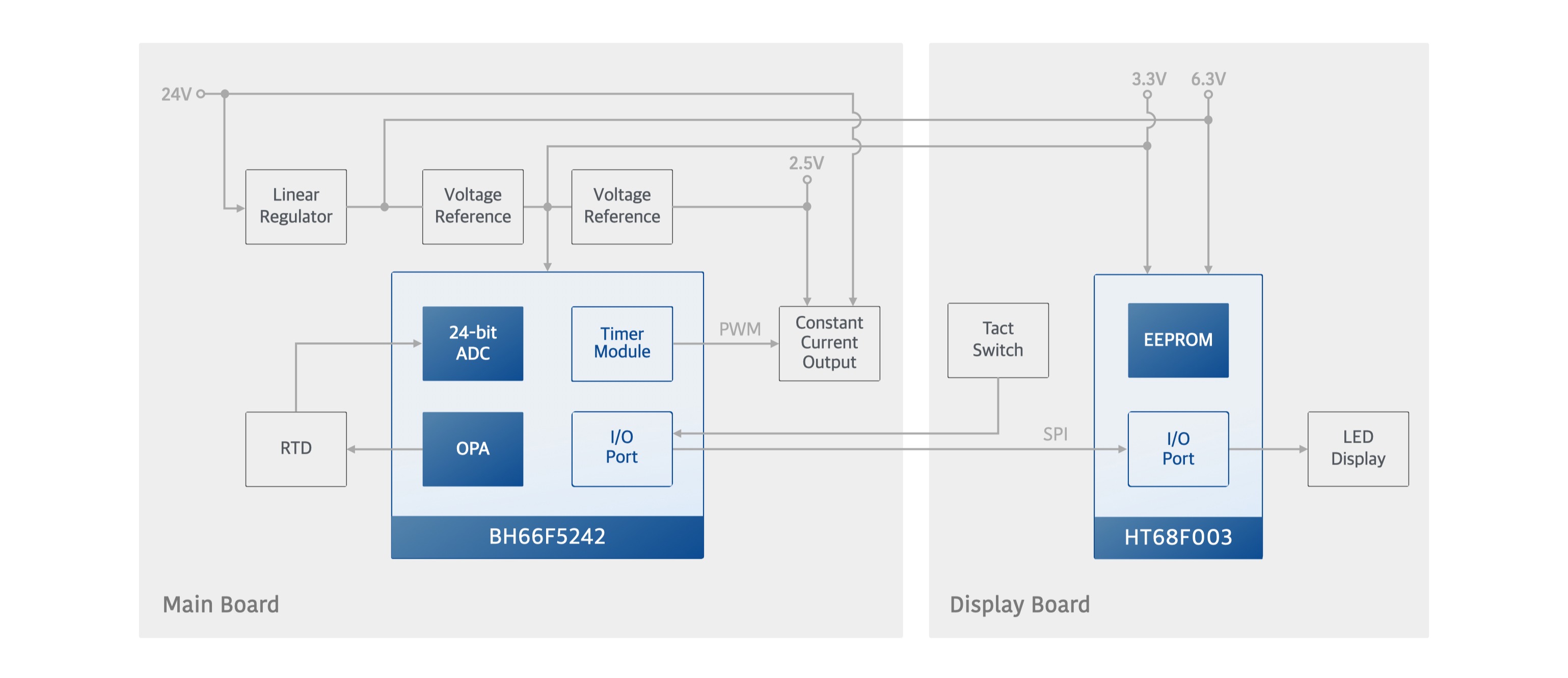

Reduced application circuitry

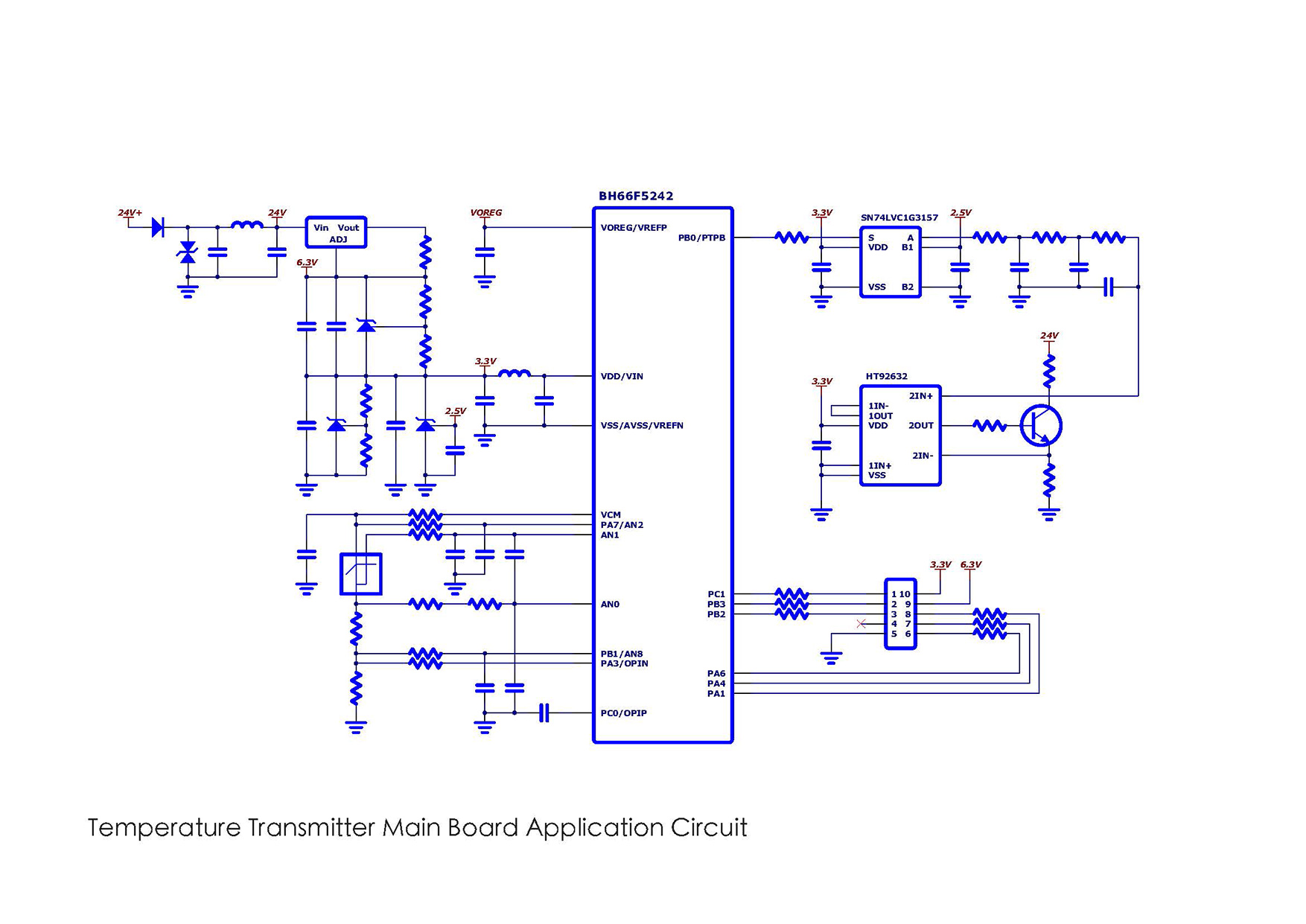

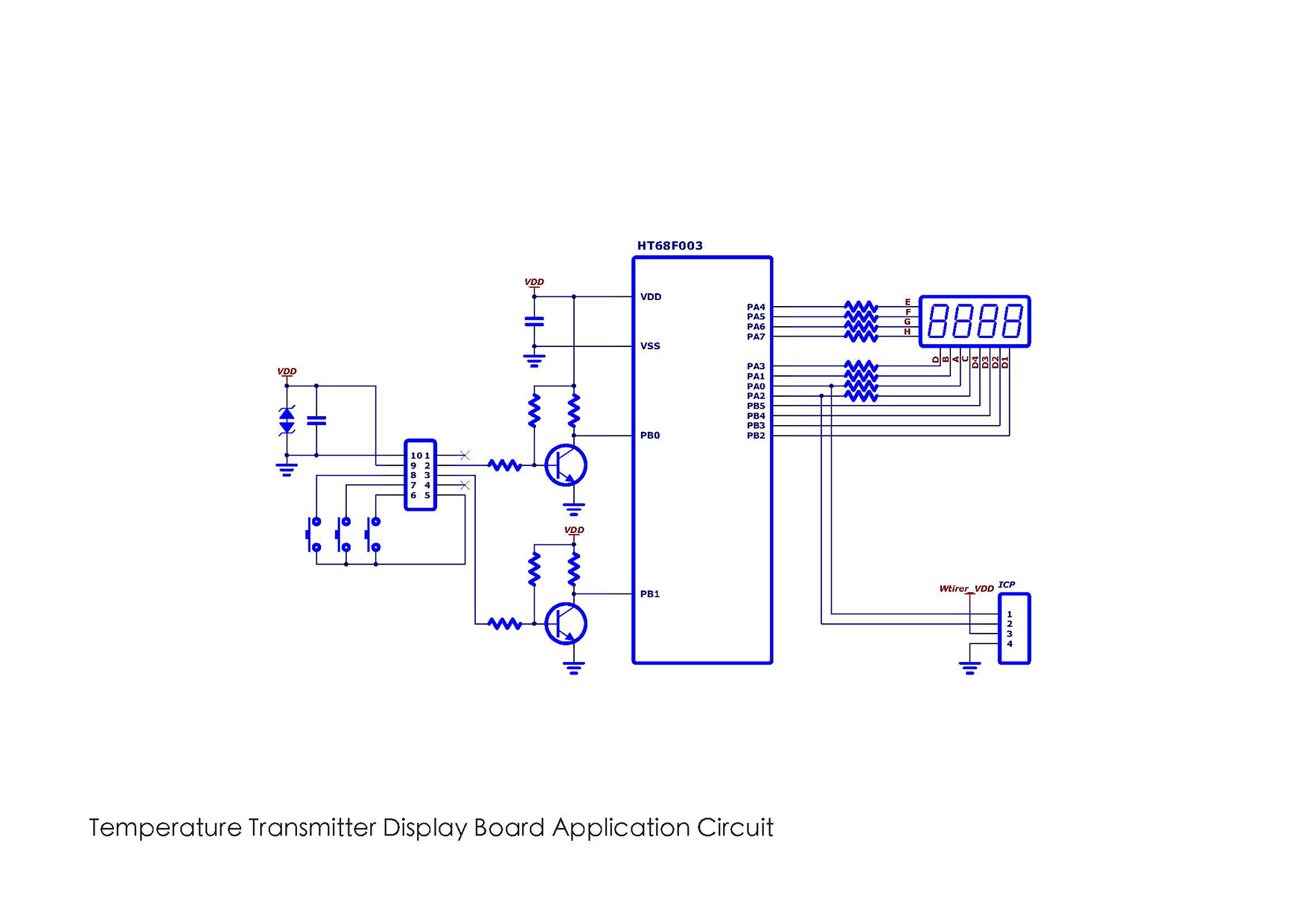

Uses a highly functionally integrated MCU, including an integrated 24-bit ADC, LDO, OPA, 12-bit DAC, 16-bit PTM and EEPROM
More stable sampling

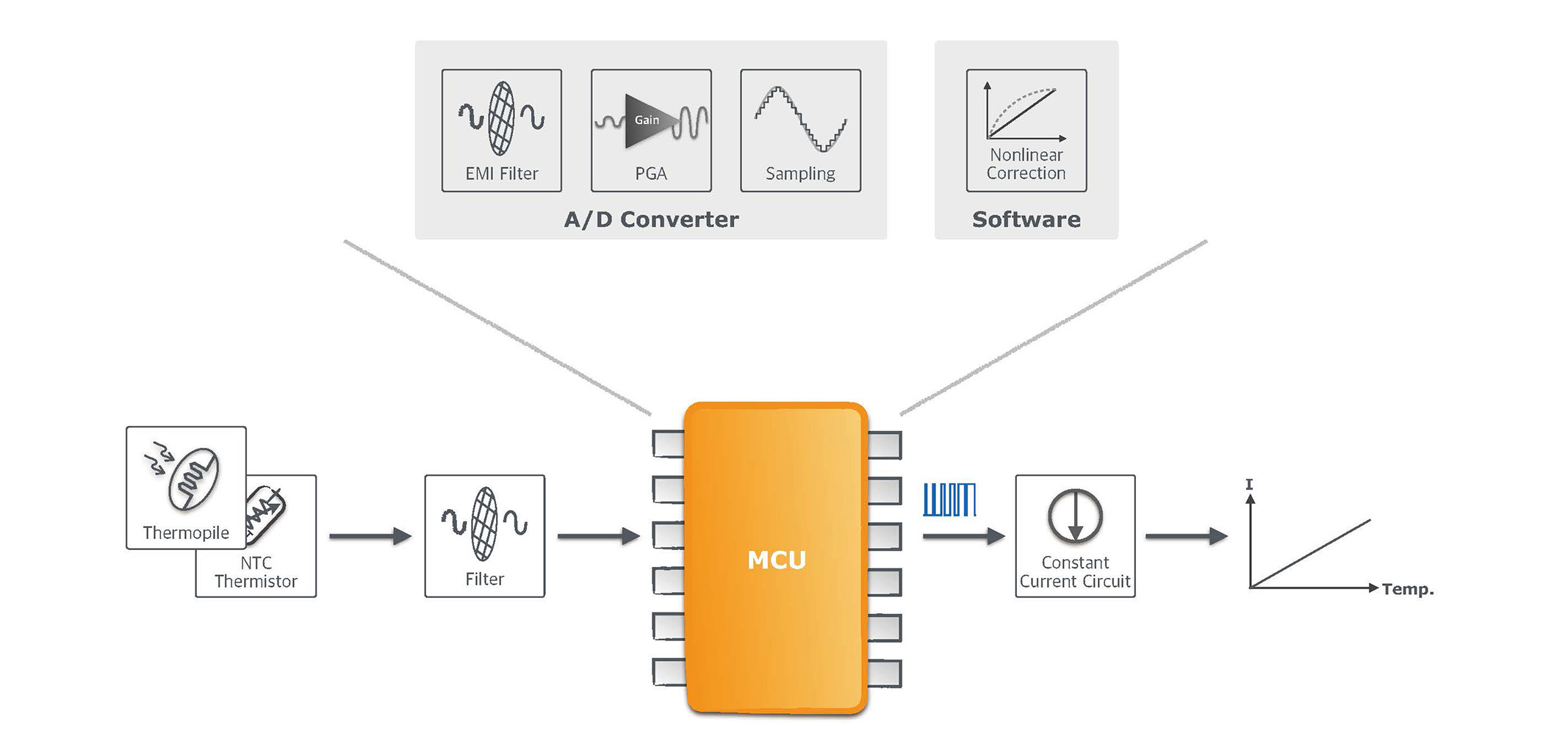

The MCU 24-bit ADC has an integrated EMI filter, which can effectively resist EMI interference and provide more stable sampling and temperature measurements.
